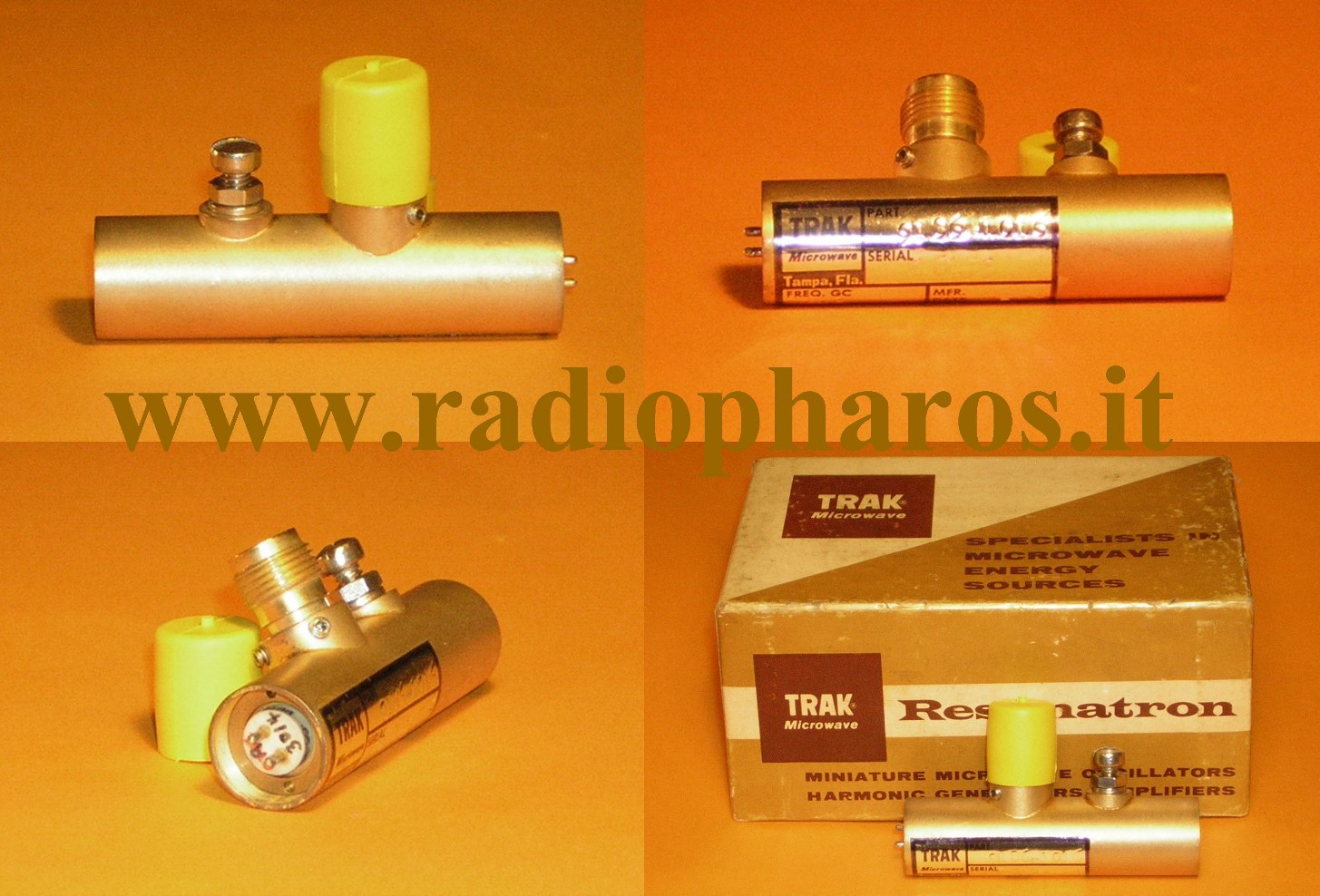

1- UFO?

L'oggetto che appare qui di lato e che potrebbe sembrare un oggetto volante misterioso è in realtà un oscillatore miniatura (L= 6 cm.) a 4,3 GHz. Viste le sue dimensioni si potrebbe pensare che sia a stato solido invece utilizza una valvola ceramica miniatura tipo 7910 che può fornire una Potenza d'Uscita Utile di 100mW ed una Potenza d'Uscita Impulsiva Utile di 100W. Costruttore: Trak Microwave Corporation USA (1966).

The object that appears to the right and that might seem like a mysterious  flying object is actually a miniature (L= 6 cm.) oscillator at 4.3GHz. Given its size you would think that it's solid state instead it uses a miniature ceramic tube/valve type 7910 that can provide an Useful Power Output of 100mW and an Useful Pulsed Power Output of 100W. Manufacturer: Trak Microwave Corporation USA (1966).

2- Traslatore meccanico da Decimale a Binario

Decimal to Binary mechanical translator
     Honeywell USA (1960)

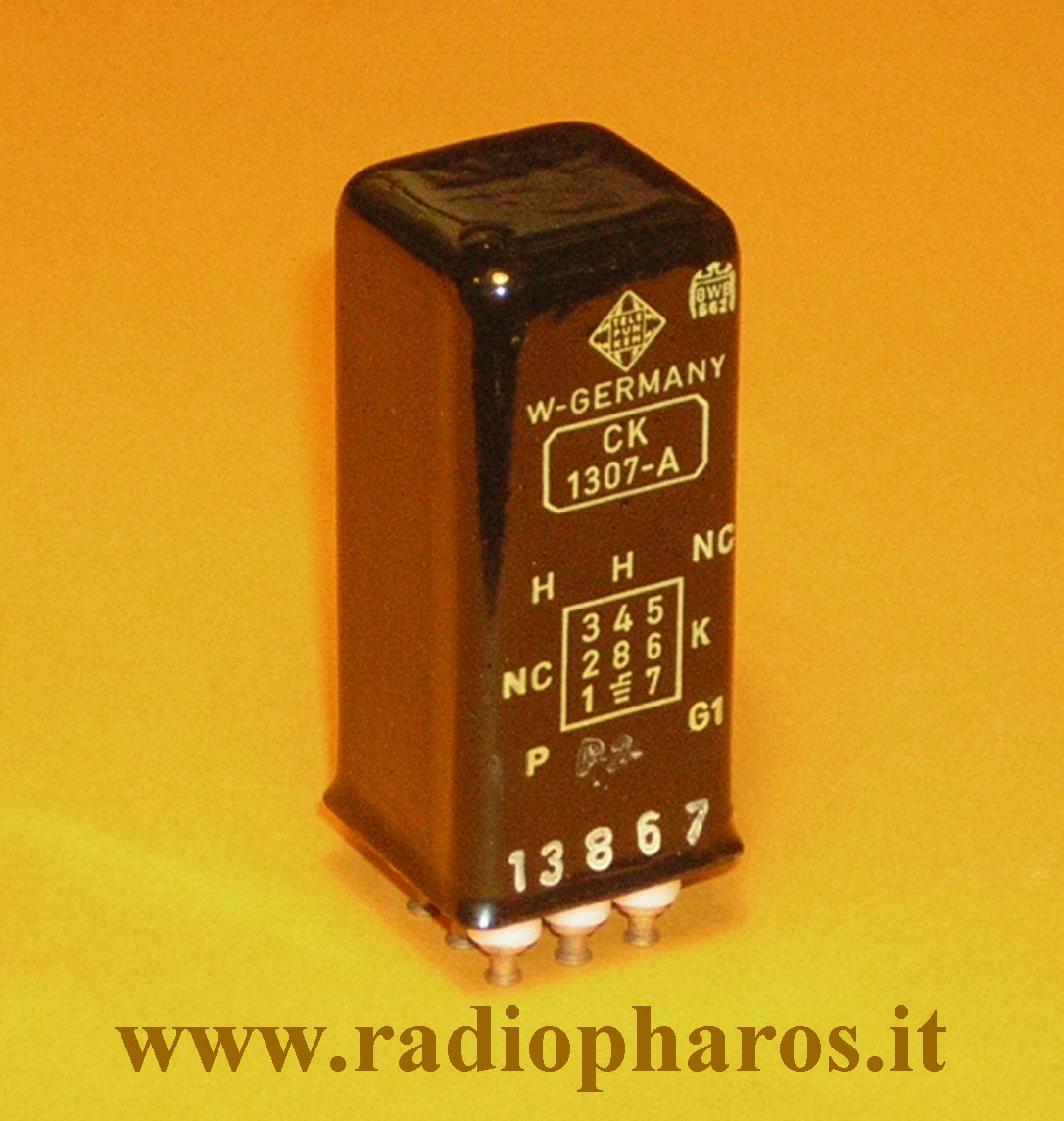

3- TRASFORMATORE?  TRANSFORMER?

Questo che sembra un normale trasformatore di tipo militare con involucro sigillato è in realtà ................... una valvola! Un triodo, probabilmente di potenza. Tipo CK 1307-A (altezza: 6cm.). Non ho altre informazioni. Telefunken (Germania).

What looks like a normal sealed military transformer is actually ................. a tube! A triode, probably a power triode. Type CK 1307-A (height: 6cm.). No other information available. Telefunken (Germany)

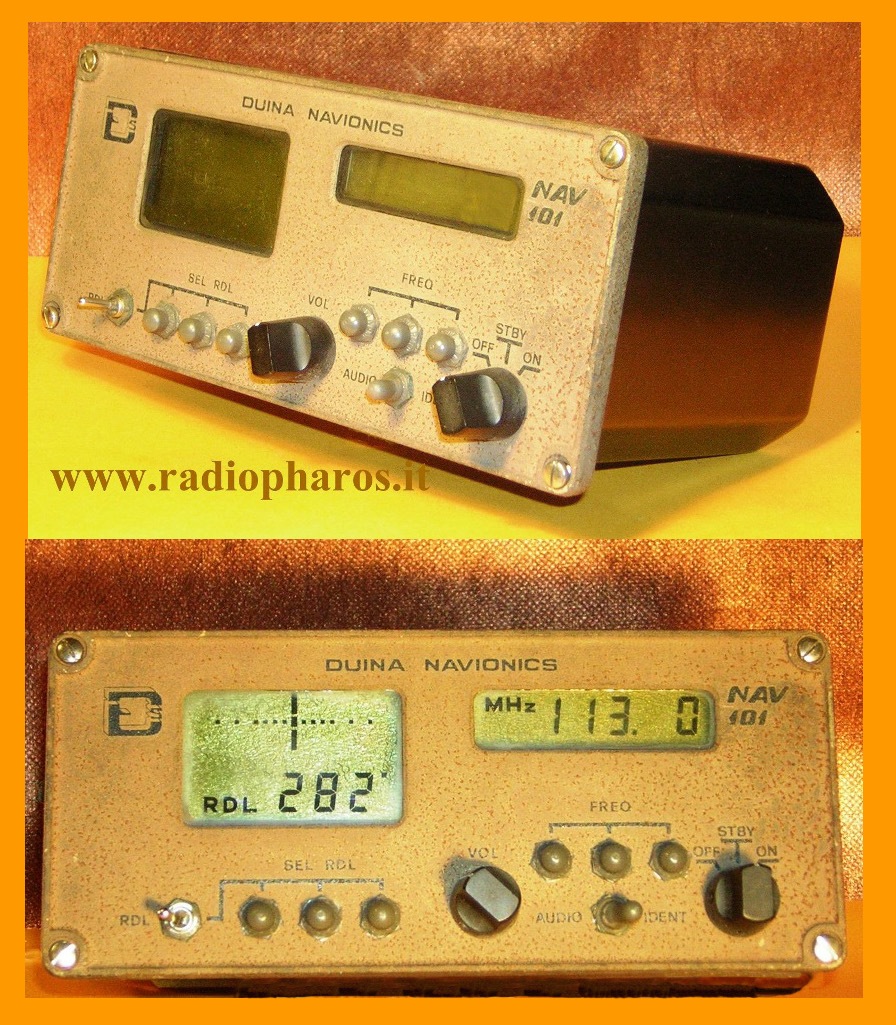

4- NAV 101

Il NAV 101 è un ricevitore VHF sintetizzato a 200 canali, spaziati di 50 kHz, nella gamma da 108,00 a 117,95 MHz, adatto a ricevere ed elaborare  automaticamente
segnali per la radioassistenza alla navigazione nautica. Dove sta la "stranezza"?

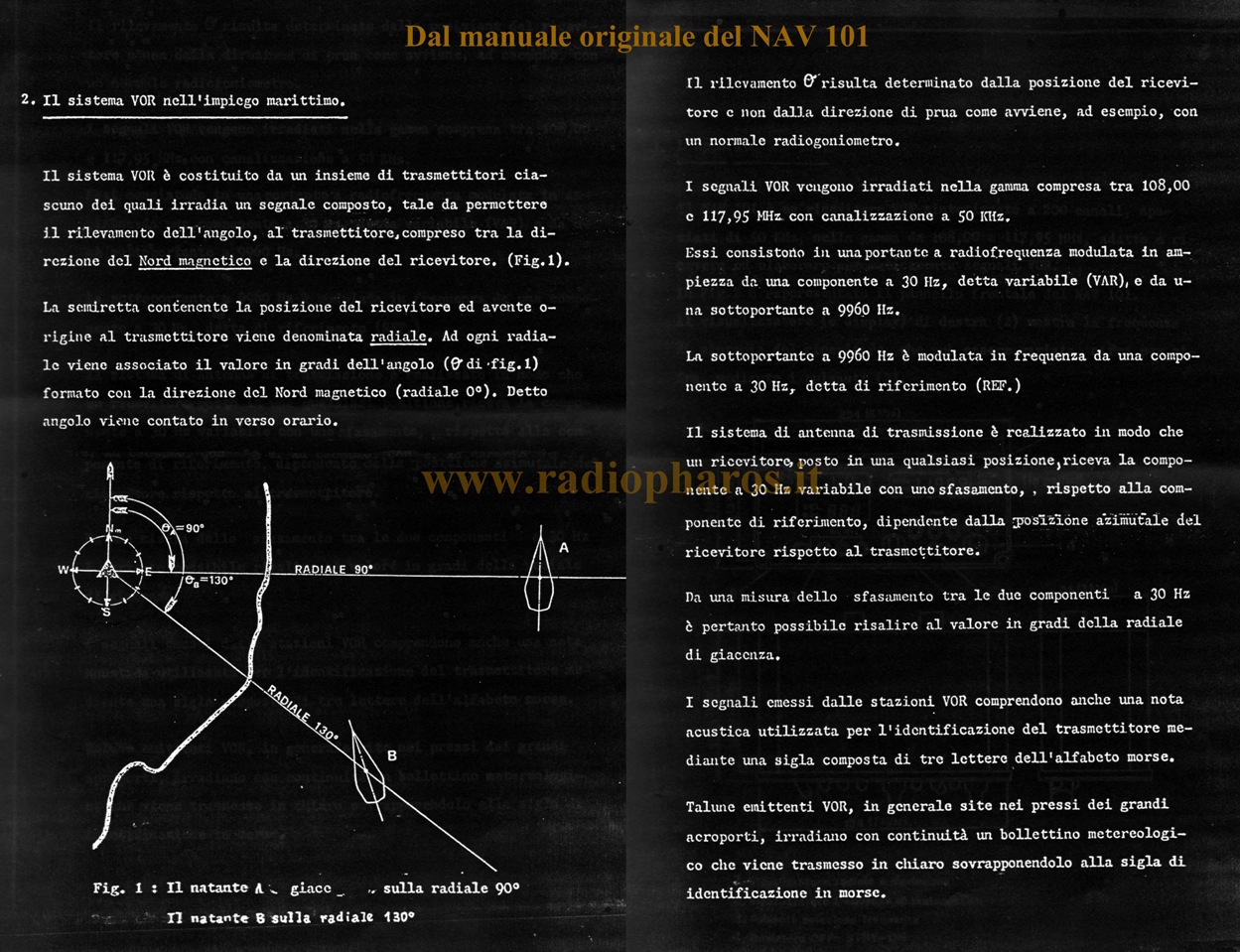

Più che di "stranezza" dobbiamo parlare di originalità, il NAV 101 sfrutta il sistema VOR originariamente concepito per usi aeronautici. Nato agli inizi degli anni settanta, introdusse un nuovo concetto nel campo della navigazione marittima. (Il sistema VOR nell'impiego marittimo) Duina Data Systems (Italia)

The NAV 101 is a 200 channels, spaced 50kHz, synthesized VHF receiver, in the range from 108.00 to 117.95 MHz, suitable to receive and automatically process radioassistance signals for marine navigation. Where is the "strangeness"?
Rather than "strangeness" we must speak of originality, the NAV 101 uses the VOR system originally developed for aeronautical uses. Born in the early seventies, it introduced a new concept in the field of maritime navigation.
Duina Data Systems (Italy).
